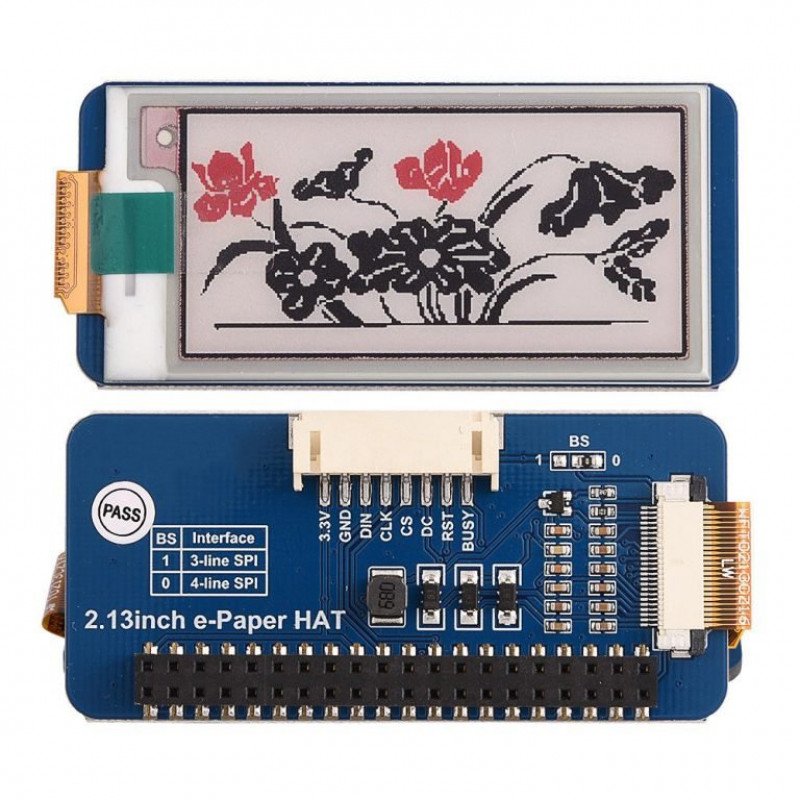

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 212×104 resolution, with an embedded controller, communicating via SPI interface, supports the red, black, and white three-colour display.
There is no backlight so it can keep displaying last content for a long time even when the power is down. As these displays have no backlight panels and it doesn’t need a continuous power supply to display the (static data with periodic intervals) data on the screen, it has a great advantage of ultra-low power consumption. Also, it has a wide viewing angle, great viewing effect under sunlight, Basically power to the display is only required for refreshing. For connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.. SPI interface can be used.
Â
Features:
- No backlight keeps displaying last content for a long time even when power is down
- Ultra low power consumption, basically power is only required for refreshing
- Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
- Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
- Onboard voltage translator, compatible with 3.3V/5V MCUs
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Â
Interface:
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | 3.3V/5V |
| GND | Ground |
| DIN | SPI MOSI pin |
| CLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output, high active |
Â
Useful Links:
Wiki :Â www.waveshare.com/wiki/2.13inch_e-Paper_HAT_(B)
Package Includes:
1 x2.13inch E-Ink Paper display HAT for Raspberry Pi
1 x Interfacing Cable
1 x Nut-Bolt and Spacer set
Note: No Raspberry Pi is included in Package
Specifications :-
| Operating Voltage (VDC) | 3.3 |
| Display Size (inch) | 2.13 |
| Outline dimension (mm) | 65 30.2 |
| Dot Pitch | 0.229 0.228 |
| Grey level | 2 |
| Display Color | Red, Black and White |
| Display Resolution | 212 104 |
| Viewing Angle | >170 |
| Interface | 3-wire SPI, 4-wire SPI |
| Full Refresh Time (s) | 15 |
| Refresh Power | 26.4mW(typ.) |
| Standby Power (mW) | <0.017 |
| Dimensions in mm (LxWxH) | 65 x 31 x 8 |
| Weight (gm) | 20 |
