SP Racing F3 Flight Controller Integrate OSD ACRO Version

SP Racing F3 flight controller board integrated OSD Acro standard version for FPV racing flight control. This SP Racing F3 Flight Controller Integrate OSD Deluxe is designed to give awesome flight performance based on tried and tested sensors while also providing unparalleled and I/O capabilities in a small and extremely lightweight form-factor using a next-generation CPU. Integrated OSD, buzzer, I2C port, sonar, battery monitoring, programmable LED, broad RC receiver etc. A good choice for you.

Features:

1. The SP Racing F3 has an ARM Cortex-M4 72Mhz CPU with Math co-processor(FPU) for efficient flight calculations that get more done in less time.
2. Loop times up to 2x as fast as previous-generation STM32F1 based boards.
3. Use all the features all the time. Connect your OSD + Smartport + SBus + GPS + LED Strip + Battery Monitoring + Sonar + 8 motors all at the same time!
4. On-board high-capacity black box flight log recorder optimize your tuning and see the results of your setup without guesswork.
5. Full support for One Shot ESC for easy PID tuning and a sharper response.
6. Dedicated output for multi-colored LED strips great for FPV racing, line-of-sight flying orientation and night flying.
7. The SP Racing F3 builds on tried and tested software, processor and sensor technology to make your aircraft fly like its on rails.
8. The SP Racing F3 runs Cleanflight which can be configured to suit your needs using a cross-platform GUI(Windows/OSX/Linux).
9. Developer friendly debugging port(SWD) and boot mode selection, unbreakable bootloader.
10. Supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM receivers. No external inverters required (built-in).

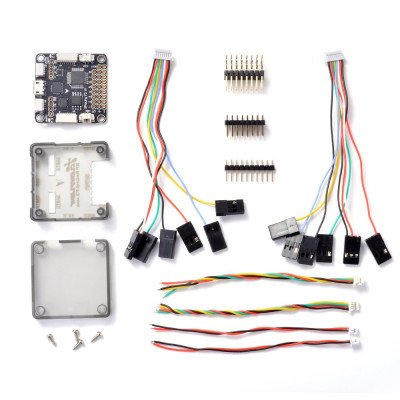

Package Includes :

1 x SP Racing Arco Version flight controller integrate OSD
1 x Protective case
1 x CP2104USB to TTL.
4 x Connection cable
4 x Required Berg Pins set
1 x Screw set

Specifications :-
