74LS26 IC – (SMD Package) Quad 2-Input High Voltage Interface Positive NAND-Gate IC (7426 IC)

This device contains four independent gates each of which performs the logic NAND function. The open-collector outputs require external pull-up resistors for proper logical operation. These gates feature high-voltage output ratings (up to 15V) for interfacing with 12V systems. Although the outputs are rated for 15V, the device supply is still rated for 5V

Specifications :-

• Supply Voltage : 4.75 – 5.25Vdc
• Maximum Clock Frequency : 40Mhz
• Power Dissipation : 2mW/gate @100kHz
• Minimum Output Current : 8mA
• Propagation Delay : 10nS
• Fan Out (TTL Loads) : 20

Package Includes :-

1 X 74LS26 IC – (SMD Package) Quad 2-Input High Voltage Interface Positive NAND-Gate IC (7426 IC)

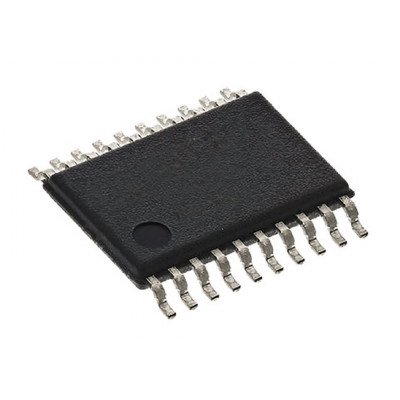

* Product Images are shown for illustrative purposes only and may differ from actual product.
